Wagtail Routable Pages and Layout Configuration

pip install wagtail
wagtail start myproject
cd myproject
python manage.py startapp articles

INSTALLED_APPS = [
    ...
    "wagtail.contrib.routable_page",  # required for RoutablePage
    "myproject.apps.articles",
]

myproject/apps/articles/
├── __init__.py
├── apps.py
├── models.py          # Article, Category, ArticleIndexPage
├── blocks.py          # All StreamField block definitions
└── admin.py           # Register Article and Category in Django admin

myproject/templates/articles/
├── article_list.html           # List view
├── article_detail.html         # Detail view
└── blocks/
    ├── cover_image_block.html
    ├── description_block.html
    └── related_articles_block.html

from django.core.paginator import EmptyPage, PageNotAnInteger, Paginator
from django.db import models
from django.shortcuts import get_object_or_404
from django.utils.translation import gettext_lazy as _

from wagtail.admin.panels import FieldPanel, ObjectList, TabbedInterface
from wagtail.contrib.routable_page.models import RoutablePageMixin, path
from wagtail.fields import StreamField
from wagtail.models import Page

from .blocks import article_detail_layout_blocks


class Category(models.Model):
    name = models.CharField(max_length=100, verbose_name=_("name"))
    slug = models.SlugField(unique=True, verbose_name=_("slug"))

    class Meta:
        verbose_name = _("category")
        verbose_name_plural = _("categories")

    def __str__(self):
        return self.name


class Article(models.Model):
    title = models.CharField(max_length=255, verbose_name=_("title"))
    slug = models.SlugField(unique=True, verbose_name=_("slug"))
    category = models.ForeignKey(
        Category,
        null=True,
        blank=True,
        on_delete=models.SET_NULL,
        related_name="articles",
        verbose_name=_("category"),
    )
    cover_image = models.ForeignKey(
        "wagtailimages.Image",
        null=True,
        blank=True,
        on_delete=models.SET_NULL,
        related_name="+",
        verbose_name=_("cover image"),
    )
    description = models.TextField(blank=True, verbose_name=_("description"))
    created_at = models.DateTimeField(auto_now_add=True, verbose_name=_("created at"))

    class Meta:
        verbose_name = _("article")
        verbose_name_plural = _("articles")

    def __str__(self):
        return self.title


class ArticleIndexPage(RoutablePageMixin, Page):
    """
    A single Wagtail page that owns:
      - /articles/          → paginated list of all Articles
      - /articles/<slug>/   → detail view for one Article

    The StreamField is edited once in the Wagtail admin and
    defines the layout for every detail view.
    """

    articles_per_page = models.IntegerField(default=10, verbose_name=_("articles per page"))

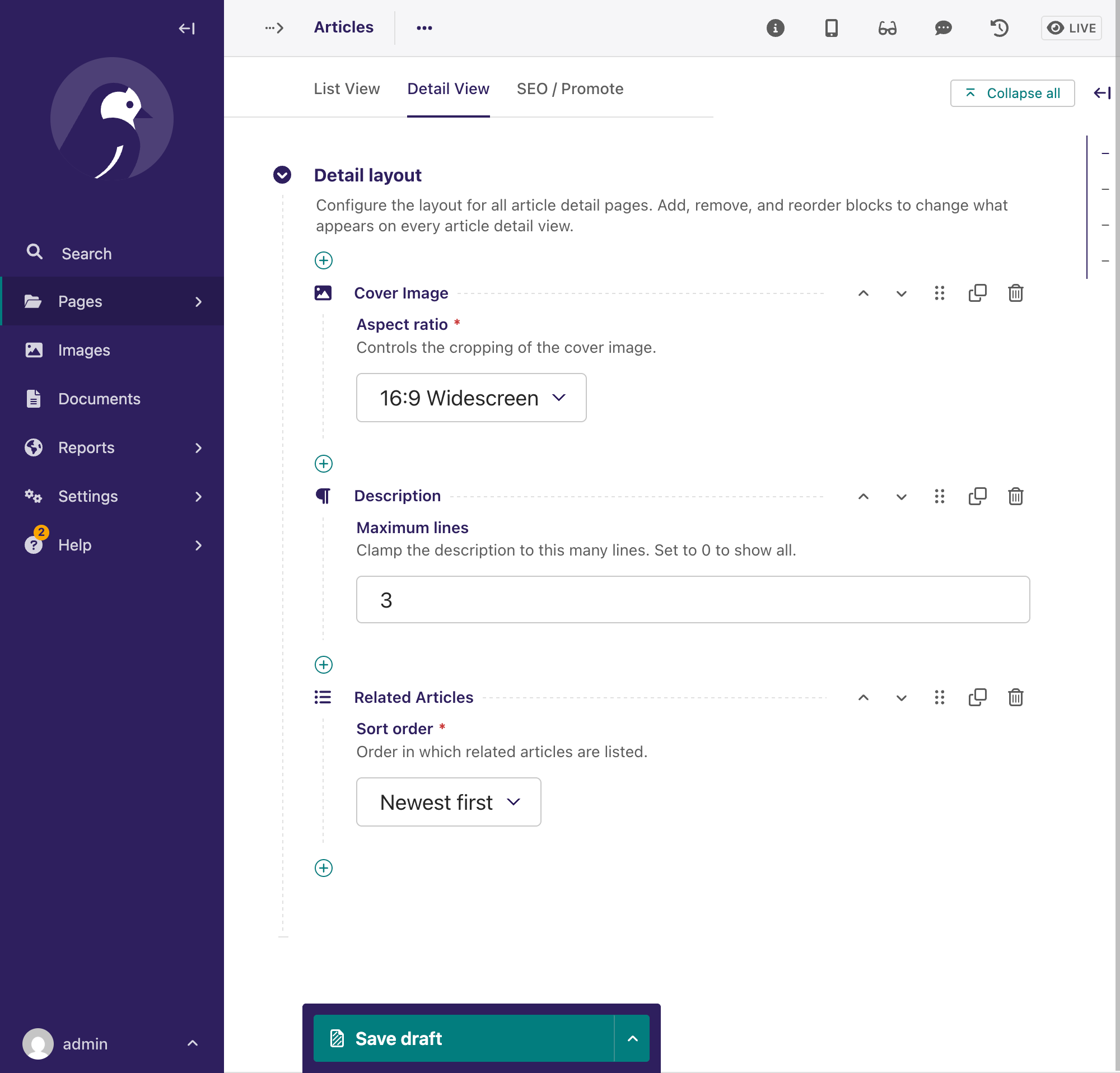

    detail_layout = StreamField(
        article_detail_layout_blocks(),
        blank=True,
        use_json_field=True,
        verbose_name=_("detail layout"),
        help_text=_(
            "Configure the layout for all article detail pages. "
            "Add, remove, and reorder blocks to change what appears "
            "on every article detail view."
        ),
    )

    # TabbedInterface gives List View and Detail View their own tabs.
    # promote_panels and settings_panels must be added explicitly here
    # because edit_handler takes full ownership of the admin UI structure.
    edit_handler = TabbedInterface([
        ObjectList(Page.content_panels + [FieldPanel("articles_per_page")], heading=_("List View")),
        ObjectList([FieldPanel("detail_layout")], heading=_("Detail View")),
        ObjectList(Page.promote_panels, heading=_("SEO / Promote")),
        ObjectList(Page.settings_panels, heading=_("Settings")),
    ])

    class Meta:
        verbose_name = _("article index page")
        verbose_name_plural = _("article index pages")

    @path("")
    def article_list(self, request):
        all_articles = Article.objects.select_related("category", "cover_image").order_by("-created_at")
        paginator = Paginator(all_articles, self.articles_per_page)
        page_number = request.GET.get("page")

        try:
            articles = paginator.page(page_number)
        except PageNotAnInteger:
            articles = paginator.page(1)
        except EmptyPage:
            articles = paginator.page(paginator.num_pages)

        return self.render(
            request,
            context_overrides={"articles": articles, "paginator": paginator},
            template="articles/article_list.html",
        )

    @path("<slug:article_slug>/")
    def article_detail(self, request, article_slug):
        article = get_object_or_404(
            Article.objects.select_related("category", "cover_image"),
            slug=article_slug,
        )
        return self.render(
            request,
            context_overrides={"article": article},
            template="articles/article_detail.html",
        )

from django.utils.translation import gettext_lazy as _

from wagtail import blocks


class CoverImageBlock(blocks.StructBlock):
    aspect_ratio = blocks.ChoiceBlock(
        choices=[
            ("16-9", _("16:9 Widescreen")),
            ("4-3", _("4:3 Standard")),
            ("1-1", _("1:1 Square")),
            ("3-1", _("3:1 Banner")),
        ],
        default="16-9",
        label=_("Aspect ratio"),
        help_text=_("Controls the cropping of the cover image."),
    )

    class Meta:
        template = "articles/blocks/cover_image_block.html"
        icon = "image"
        label = _("Cover Image")


class DescriptionBlock(blocks.StructBlock):
    max_lines = blocks.IntegerBlock(
        min_value=0,
        default=0,
        label=_("Maximum lines"),
        help_text=_("Clamp the description to this many lines. Set to 0 to show all."),
        required=False,
    )

    class Meta:
        template = "articles/blocks/description_block.html"
        icon = "pilcrow"
        label = _("Description")


class RelatedArticlesBlock(blocks.StructBlock):
    sort_order = blocks.ChoiceBlock(
        choices=[
            ("newest", _("Newest first")),
            ("oldest", _("Oldest first")),
            ("title_asc", _("Title A → Z")),
            ("title_desc", _("Title Z → A")),
        ],
        default="newest",
        label=_("Sort order"),
        help_text=_("Order in which related articles are listed."),
    )

    def get_context(self, value, parent_context=None):
        context = super().get_context(value, parent_context=parent_context)
        article = (parent_context or {}).get("article")
        if not article or not article.category_id:
            context["related_articles"] = []
            return context

        from .models import Article

        sort_map = {
            "newest": "-created_at",
            "oldest": "created_at",
            "title_asc": "title",
            "title_desc": "-title",
        }

        context["related_articles"] = (
            Article.objects.select_related("category", "cover_image")
            .filter(category=article.category)
            .exclude(pk=article.pk)
            .order_by(sort_map.get(value["sort_order"], "-created_at"))[:3]
        )
        return context

    class Meta:
        template = "articles/blocks/related_articles_block.html"
        icon = "list-ul"
        label = _("Related Articles")


def article_detail_layout_blocks():
    """
    Returns the list of (name, block) tuples used in ArticleIndexPage.detail_layout.
    Defined as a function so models.py can import it without circular issues.
    """
    return [
        ("cover_image", CoverImageBlock()),
        ("description", DescriptionBlock()),
        ("related_articles", RelatedArticlesBlock()),
    ]

{% extends "base.html" %}
{% load wagtailcore_tags wagtailimages_tags i18n wagtailroutablepage_tags %}

{% block content %}
<main class="article-index">
  <h1>{{ page.title }}</h1>
  <ul class="article-list">
    {% for article in articles %}
      <li class="article-card">
        {% if article.cover_image %}{% image article.cover_image width-400 as img %}
          <img src="{{ img.url }}" alt="{{ article.title }}">
        {% endif %}
        <h2>
          <a href="{% routablepageurl page "article_detail" article.slug %}">{{ article.title }}</a>
        </h2>
        {% if article.category %}<span class="badge">{{ article.category.name }}</span>{% endif %}
        <p>{{ article.description|truncatewords:30 }}</p>
      </li>
    {% empty %}
      <li>{% trans "No articles yet." %}</li>
    {% endfor %}
  </ul>
  {% if articles.has_other_pages %}
    <nav class="pagination" aria-label="{% trans 'Article pagination' %}">
      {% if articles.has_previous %}
        <a href="?page={{ articles.previous_page_number }}">{% trans "← Previous" %}</a>
      {% endif %}
      <span>{% blocktrans with num=articles.number total=articles.paginator.num_pages %}Page {{ num }} of {{ total }}{% endblocktrans %}</span>
      {% if articles.has_next %}
        <a href="?page={{ articles.next_page_number }}">{% trans "Next →" %}</a>
      {% endif %}
    </nav>
  {% endif %}
</main>
{% endblock %}

{% extends "base.html" %}
{% load i18n wagtailcore_tags wagtailroutablepage_tags %}

{% block content %}
<article class="article-detail">
  <header>
    <h1>{{ article.title }}</h1>
    {% if article.category %}<span class="badge">{{ article.category.name }}</span>{% endif %}
  </header>
  {% include_block page.detail_layout with article=article page=page %}
  <p>
    <a href="{% routablepageurl page "article_list" %}">{% trans "← Back to all articles" %}</a>
  </p>
</article>
{% endblock %}

{% load wagtailimages_tags %}

{% if article.cover_image %}
  <div class="cover-image cover-image--{{ value.aspect_ratio }}">
    {% image article.cover_image width-1200 as img %}
    <img src="{{ img.url }}" alt="{{ article.title }}">
  </div>
{% endif %}

<section class="article-description">
  <p{% if value.max_lines > 0 %} class="line-clamp" style="-webkit-line-clamp: {{ value.max_lines }};"{% endif %}>
    {{ article.description }}
  </p>
</section>

{% load i18n wagtailimages_tags wagtailroutablepage_tags %}

{% if related_articles %}
  <section class="related-articles">
    <h2>{% trans "Related Articles" %}</h2>
    <ul class="related-articles__list">
      {% for rel in related_articles %}
        <li class="related-card">
          {% if rel.cover_image %}{% image rel.cover_image width-400 as img %}
            <img src="{{ img.url }}" alt="{{ rel.title }}">
          {% endif %}
          <div class="related-card__body">
            {% if rel.category %}<span class="badge">{{ rel.category.name }}</span>{% endif %}
            <h3>
              <a href="{% routablepageurl page "article_detail" rel.slug %}">{{ rel.title }}</a>
            </h3>
            <p>{{ rel.description|truncatewords:20 }}</p>
          </div>
        </li>
      {% endfor %}
    </ul>
  </section>
{% endif %}

from django.contrib import admin
from .models import Article, Category


@admin.register(Category)
class CategoryAdmin(admin.ModelAdmin):
    list_display = ("name", "slug")
    prepopulated_fields = {"slug": ("name",)}


@admin.register(Article)
class ArticleAdmin(admin.ModelAdmin):
    list_display = ("title", "category", "created_at")
    list_filter = ("category",)
    search_fields = ("title", "description")
    prepopulated_fields = {"slug": ("title",)}

python manage.py makemigrations articles
python manage.py migrate
python manage.py createsuperuser
python manage.py runserver
